StandaardF436M
Beschrijving:Bedrijfsproducten ((Flat wahsers) worden gebruikt in de High-Speed Magnetic Levitation spoorlijn in Shanghai, Shanghai Oriental Pearl TV toren, Shanghai Grand Theater, Nanpu Bridge,Yangpu Bridge, Xupu Bridge,Anhui Wuhu brug, Chongqing Changshou Super Bridge.
| Materiaal | 45#/40CR |
| Grootte | M12-M100 |
| Afmaken. | Gewone/zwarte/ZINK/HDG/Dacromet/Mechanisch gegalvaniseerd |
| Hardheid | HV300/HRC35-45 |
| Markering | kan worden aangepast |
| Toepassing | Bouw/Windturbines/spoorlijn |
| Verpakking | Karton + pallet; we kunnen wasmachines verpakken naargelang uw eisen |
| Voorwaarden | FOB + Shanghai/Ningbo |
| Leveringstermijn | 30-70 dagen |
| Grootte | Inwendige diameter ((max)) | Inwendige diameter ((min) | Buitenste diameter (((max.) | Buitendeursnede ((min) |
Dikte (maximaal) |
Dikte (min) |
|---|---|---|---|---|---|---|
| M12 | 14.4 | 14.0 | 27.0 | 25.7 | 4.6 | 3.1 |
| M14 | 16.4 | 16.0 | 30.0 | 28.7 | 4.6 | 3.1 |
| M16 | 18.4 | 18.0 | 34.0 | 32.4 | 4.6 | 3.1 |
| M20 | 22.5 | 22.0 | 42.0 | 40.4 | 4.6 | 3.1 |
| M22 | 24.5 | 24.0 | 44.0 | 42.4 | 4.6 | 3.4 |
| M24 | 26.5 | 26.0 | 50.5 | 48.4 | 4.6 | 3.4 |
| M27 | 30.5 | 30.0 | 56.0 | 54.1 | 4.6 | 3.4 |
| M30 | 33.6 | 33.0 | 60.0 | 58.1 | 4.6 | 3.4 |
| M36 | 39.6 | 39.0 | 72.0 | 70.1 | 4.6 | 3.4 |
| M42 | 45.6 | 45.0 | 84.0 | 81.8 | 7.2 | 4.6 |
| M48 | 52.7 | 52.0 | 95.0 | 92.8 | 7.2 | 4.6 |
| M56 | 62.7 | 62.0 | 107.0 | 104.8 | 8.7 | 6.1 |
| M64 | 70.7 | 70.0 | 118.0 | 115.8 | 8.7 | 6.1 |
| M72 | 78.7 | 78.0 | 130.0 | 127.5 | 8.7 | 6.1 |
| M80 | 86.9 | 86.0 | 142.0 | 139.5 | 8.7 | 6.1 |
| M90 | 96.9 | 96.0 | 159.0 | 156.5 | 8.7 | 6.1 |
| M100 | 107.9 | 107.0 | 176.0 | 173.5 | 8.7 | 6.1 |

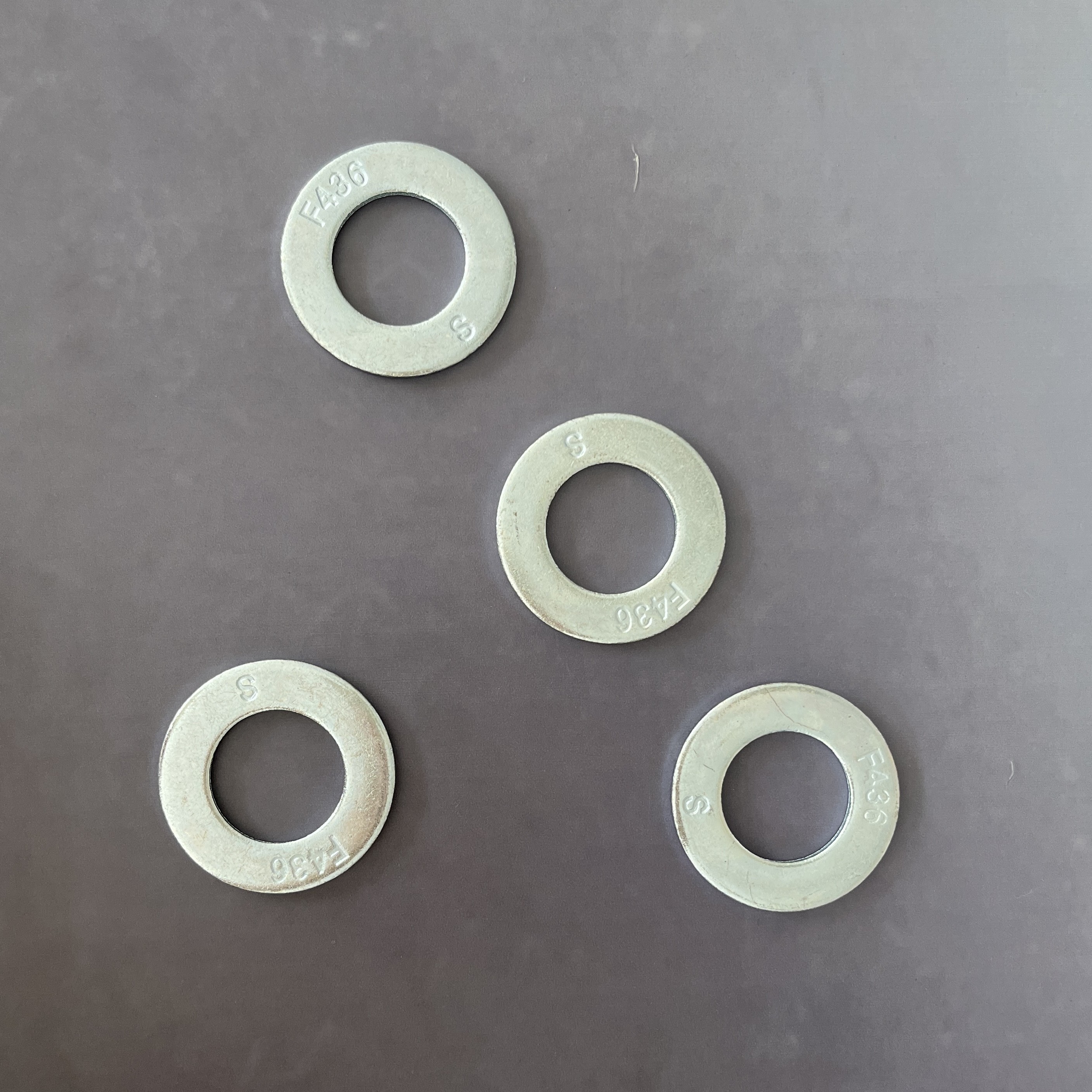

Productenfoto's voor platte wasmachines
